356,71

1 laos

Tootekood: SNL522-619 Kategooriad: ,

Kirjeldus

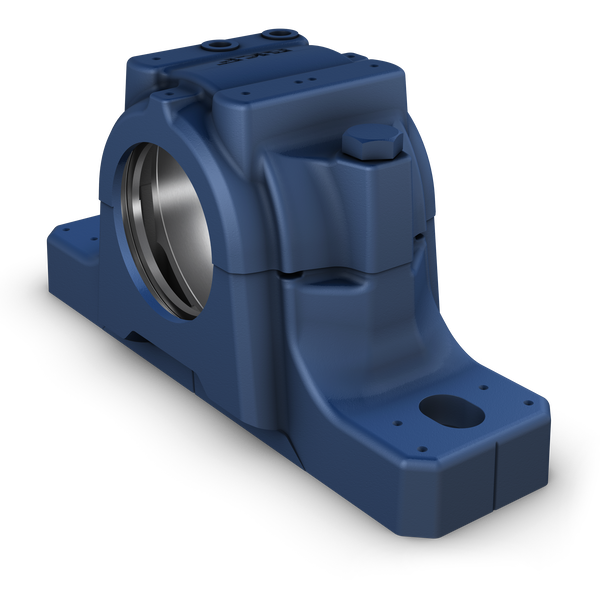

Superior performance in all sectors

High load carrying capacity, robust design,
accurately machined surfaces and simplified
installation make SKF housings the first choice
for machine manufacturers and end users.

DIMENSIONS
Attachment bolt size 24 mm
Centre distance between bolt holes 350 mm
Centre distance between bolt holes (axial direction)
Centre height (pillow block) 125 mm
Pitch diameter of bolt holes
Seating diameter 200 mm

PROPERTIES
Bearing housing seal type Without
Fastening bolt hole type With holes (unspecified type)
Housing configuration Two-piece
Housing lubrication feature/possibility Grease
Housing type Plummer/pillow block
Material, housing Cast iron
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 2
